Ancient Inventions That Were Ahead of Their Time

Ancient inventors built a geared sky calculator, earthquake indicator, water clock and working prosthetic toes. Surviving evidence shows how they worked.

Which ancient inventions were ahead of their time?

The Antikythera mechanism turned the movement of bronze gears into a model of the sky. Other ancient inventions detected earthquakes, heated floors from below and helped people walk after losing a toe. What makes these devices remarkable is how precisely their makers framed a problem, sometimes using materials as ordinary as water, wood or clay.

This editorial ranking, checked in November 2026, gives priority to an ingenious working principle and evidence that helps explain it. The table identifies the kinds of evidence available. A surviving fragment, a written account and a working replica allow different conclusions about what people actually built and used.

Rank Invention Place or tradition What the evidence lets us see
1 Antikythera mechanism Ancient Greek world Bronze fragments preserve gears, inscriptions and traces of astronomical displays
2 Hot-mixed concrete Ancient Rome Chemical analysis and tests of modern mixes suggest a way some cracks could fill
3 Zhang Heng’s seismoscope Han China An account of a directional indicator inspired later reconstructions
4 Hero’s aeolipile Alexandria A description and working models demonstrate rotation driven by steam jets
5 Water-lifting screw Traditionally associated with Archimedes Later working pumps preserve the water-lifting principle
6 Water clock Ancient Egypt Objects and markings show how a changing water level could track time
7 Hypocaust Roman baths and other heated buildings Surviving furnaces and floor supports show the route of heat
8 Artificial big toes Ancient Egypt Surviving objects, wear and replica trials support a practical use

As of

1. How did the Antikythera mechanism calculate the sky?

A clockmaker can choose gear sizes so that a hand turns at a particular rate. The maker of the Antikythera mechanism used the same relationship to model cycles in the sky. Turn one part of the gear train and other parts advance by different amounts. A person could consult the resulting displays instead of carrying out each calculation by hand. A dial could express a repeating cycle even when that cycle took far longer than a person’s turn of the handle.

A review in Nature Astronomy places construction around the second century BCE. Researchers have studied the surviving teeth, inscriptions and arrangement of fragments to identify calendar, lunar and eclipse functions. How much of the original design can be recovered varies across the instrument. A modern replica can illustrate a proposed arrangement in a missing section without establishing that every wheel once sat exactly there.

2. How could Roman concrete fill a crack?

A pale lump in a piece of old mortar looks like an ingredient that someone failed to mix properly. A research group studying Roman concrete examined the chemistry of those lime-rich inclusions and found evidence consistent with hot mixing. Using reactive quicklime during preparation could leave small reservoirs of calcium in hardened material.

Imagine a fine crack that intersects one of those reservoirs and admits water. Calcium can enter solution and mineral deposits can form along the opening, obstructing the path the water took. The researchers tested newly made mixes inspired by what they found and demonstrated crack-filling potential under their test conditions. That experiment gives the inclusions a possible job. It does not show that Roman concrete could mend every fracture or that every Roman builder followed one recipe.

The distinction also matters for modern manufacturing materials. A property observed in one formulation, under a particular test, is a good reason to investigate a mechanism before applying the finding to an entire material family.

3. How did Zhang Heng’s earthquake detector give a direction?

Chinese accounts describe a vessel ringed with dragons, each holding a ball above the mouth of a frog. A disturbance could release a ball on one side. The observer could return to the instrument and see which frog had caught it. A momentary disturbance had left a lasting, readable indication.

The Smithsonian associates the design with Zhang Heng and the account of AD 132. Its museum replica simplifies the original arrangement. The ball explains how someone read the result, but it does not settle how motion was sensed inside. Several designs might reproduce the visible behavior. The instrument is best described as a seismoscope, an indicator that movement occurred. It supplied neither a continuous chart of shaking nor advance notice that the ground was about to move.

4. Why does Hero’s steam sphere spin?

Hero’s aeolipile directs steam into a hollow sphere with bent outlets. Escaping steam carries momentum in one direction and the sphere turns in the other. With the outlets arranged around the axis, their effects reinforce the rotation instead of canceling each other. A working museum model lets visitors see an idea that would otherwise be hidden in a line drawing.

What the demonstration proves is fairly narrow and interesting in its own right. A continuous flow of steam can keep something turning. Delivering useful power to a mill would introduce a load, friction, fuel demands and the problem of coupling the output to another machine. The evidence for the sphere shows a familiar physical principle much earlier than an industrial steam turbine. It does not establish a lost steam-powered industry.

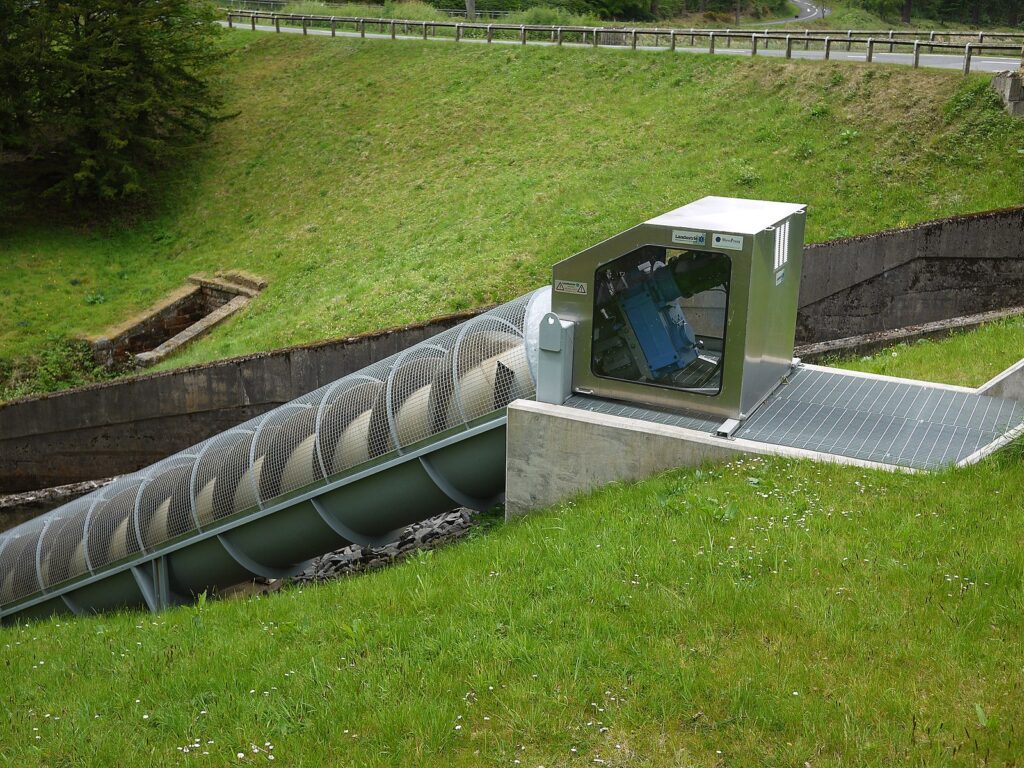

5. How can a turning screw lift water uphill?

Set a helical screw at an incline with its lower end in water. As it turns, pockets formed by the spiral and surrounding surface carry water toward the upper end. Individual pockets move generally uphill even as the machine rotates around an axis that stays in place. That is why this arrangement can raise water without a bucket returning empty after each lift.

The American Society of Mechanical Engineers describes the screw-pump concept as traditionally attributed to Archimedes. That attribution does not identify the first person ever to try a helical water lift. A documented later example makes the operating principle easier to picture. In a California salt works, wind drove a screw that moved brine from one evaporation pond into a higher one. The power source changed while the water still climbed the same way.

6. How did Egyptians tell time with water?

A sundial loses its shadow after dark. A water clock can keep giving an indication as long as water moves through it in a sufficiently predictable way. In an outflow clock, water leaves a vessel through a small opening and its falling surface passes marks on the inside. Someone looking into the vessel reads the level against the scale.

The Metropolitan Museum of Art places evidence for Egyptian water clocks in the New Kingdom, around 1500 BCE. The Egyptians divided day and night into hours, without leaving evidence for measuring minutes and seconds in the modern sense. A reading therefore belonged to a particular way of organizing time. Even for a maker who understood the desired interval, shaping and marking a vessel was a separate challenge: water in a nearly full container does not drain exactly as it does near the bottom.

7. How did a Roman bathhouse heat the floor?

The floor of a heated room stood on short stacks of tile or stone. A furnace fed heat into the cavity, warming the underside of the floor. The room nearest the furnace could make use of the hottest part of the system, while one farther away could stay cooler. The building itself distributed heat before a bather stepped inside.

At a ruined bathhouse the stacks can look like rows of little stools. They once supported the surface people walked on. Knowing where that surface used to be changes what the ruins reveal. An isolated stack says relatively little, while the stacks, stokehole and furnace together explain the heating system. That same attention to the place where an object was found helps explain why ancient statues have broken noses.

8. Could an artificial toe do more than complete a burial?

Researchers studied two ancient Egyptian artificial big toes. One surviving example uses wood and leather. The other uses cartonnage, a layered material made with linen, glue and plaster. The objects predate 600 BCE and show evidence of wear. Their resemblance to toes raises an obvious question: did they just look right, or could they take a useful load inside a sandal?

A University of Manchester study used replicas and volunteers to investigate how the designs worked during walking. The trials support a functional interpretation, while leaving each ancient wearer’s daily habits unknown. Here a small object offers evidence for a subtle engineering problem: a replacement part must fit the person, cooperate with the shoe and tolerate repeated steps. It is also a useful lens for looking at futuristic jobs. Some of the work that looks most advanced starts with noticing an ordinary need in unusually precise detail.

Frequently asked questions

Which ancient invention calculated astronomical events?

The Antikythera mechanism used linked gears to represent astronomical cycles. Surviving fragments support several functions, while parts of its original display remain open to reconstruction.

Did ancient Rome have heated floors?

Yes. In a hypocaust, a furnace supplied heat to a space under a raised floor, warming rooms above it.

Who invented the first earthquake detector in China?

Chinese accounts associate Zhang Heng with an instrument reported in AD 132. Its visible signal indicated a direction, and the surviving museum examples are reconstructions.

Did an ancient steam device power factories?

Hero's aeolipile demonstrates how steam jets can turn a sphere. A demonstration of rotation is different from evidence that the device drove productive machinery.

Could ancient Egyptian artificial toes help people walk?

Researchers tested replicas with volunteers and found support for a practical walking function. The experiment cannot reconstruct how often a particular ancient owner wore a toe.

Sources

  1. Our current knowledge of the Antikythera Mechanism | Nature Astronomy
  2. Hot mixing and the durability of ancient Roman concrete | MIT research repository
  3. Chinese seismoscope replica | Smithsonian National Museum of American History
  4. Working model of Hero's aeolipile | Science Museum Group
  5. Aeolipile | Smithsonian National Museum of American History
  6. Archimedes screw pump engineering landmark | ASME
  7. Telling time in ancient Egypt | Metropolitan Museum of Art
  8. Baths and bathing in Roman Britain | English Heritage
  9. Egyptian toes likely to be the world's oldest prosthetics | University of Manchester
